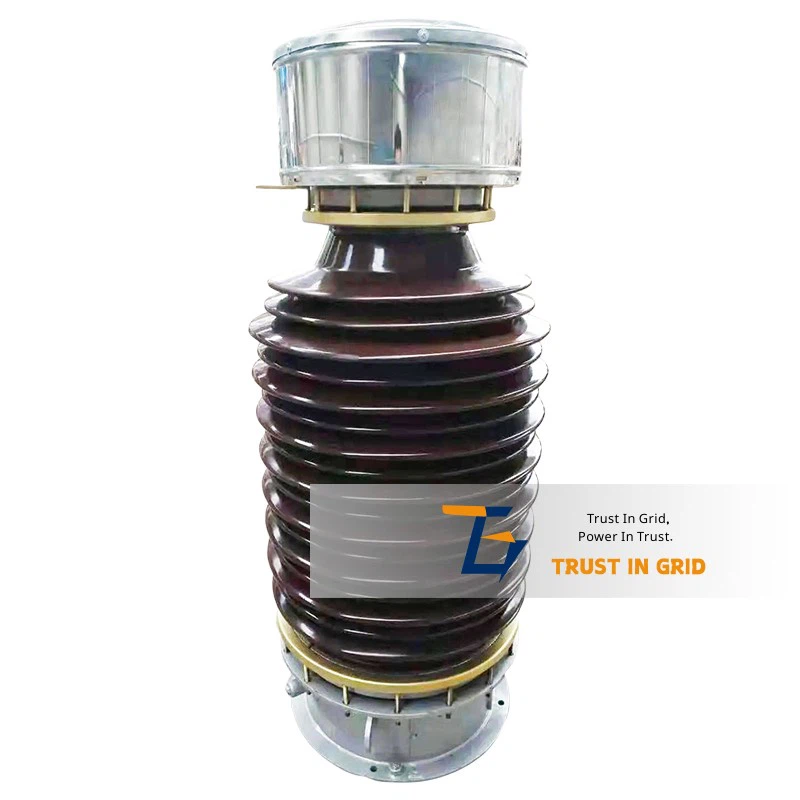

JDCF / JDC5-220kV Series Voltage Transformer
Looking for a 220kV voltage transformer that meets both IEC and GB standards without long delivery times? Our single-phase porcelain-insulated CVTs are built for reliable metering and relay protection.
- Certified Compliance: Meets GB1207 and IEC 60044-2 standards. Certificates provided for grid approval.
- High Pollution Resistance: Up to 7560mm creepage distance, designed for severe pollution environments.
- Lower Operating Costs: Low magnetic flux density ensures strong anti-ferroresonance and low partial discharge.
- Project-Ready: Five-coil products available upon request to match your specific protection scheme.
Before You Send An Inquiry
Standard vs. Custom: Standard models ship quickly. For special high-altitude or heavy-pollution environments, send your project specs for a fast feasibility check.
Documentation: Full type test reports, routine test reports, and compliance certificates (GB/IEC) are available before shipment.
Lead Time: Confirmed in writing at quotation. We understand project deadlines and can discuss expedited shipping for urgent substation needs.
Packaging & Shipping: Heavy-duty export wooden cases with shockproof and moisture-proof protection for long-distance sea freight.

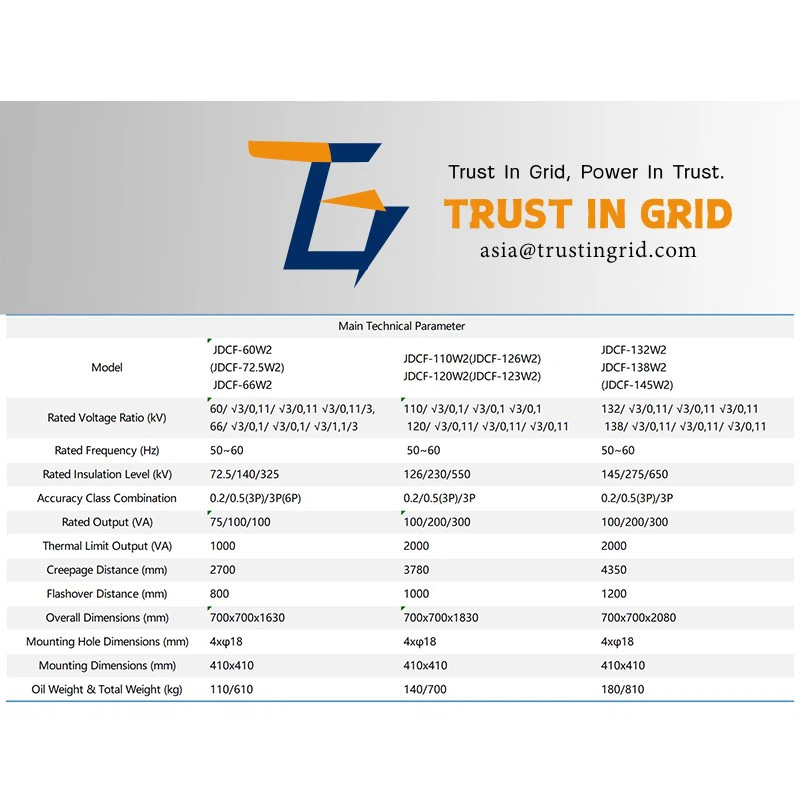

Technical Specifications
Select the model that matches your system voltage. For custom ratios or specific accuracy classes, please contact us.
|
Model |
JDCF-60W2 |
JDCF-110W2(JDCF-126W2) |
JDCF-132W2 |
|
Rated Voltage Ratio (kV) |
60/ √3/0,11/ √3/0,11 √3/0,11/3, |
110/ √3/0,1/ √3/0,1 √3/0,1 |
132/ √3/0,11/ √3/0,11 √3/0,11 |
|
Rated Frequency (Hz) |
50~60 |
50~60 |
50~60 |
|
Rated Insulation Level (kV) |
72.5/140/325 |
126/230/550 |
145/275/650 |
|
Accuracy Class Combination |
0.2/0.5(3P)/3P(6P) |
0.2/0.5(3P)/3P |
0.2/0.5(3P)/3P |
|
Rated Output (VA) |
75/100/100 |
100/200/300 |
100/200/300 |
|
Thermal Limit Output (VA) |
1000 |
2000 |
2000 |
|
Creepage Distance (mm) |
2700 |
3780 |
4350 |
|
Flashover Distance (mm) |
800 |
1000 |
1200 |
|
Overall Dimensions (mm) |
700x700x1630 |
700x700x1830 |
700x700x2080 |
|
Mounting Hole Dimensions (mm) |
4xφ18 |
4xφ18 |
4xφ18 |
|
Mounting Dimensions (mm) |
410x410 |
410x410 |
410x410 |
|
Oil Weight & Total Weight (kg) |
110/610 |
140/700 |
180/810 |
Core Advantages
Superior Sealing Life: Limited-position sealing design keeps all sealing components away from the atmosphere. This prevents oil leakage and extends maintenance intervals.
Mechanical Strength: Cast-on-flange porcelain bushing delivers high mechanical strength, reducing the risk of damage during transport and installation.
Stable Operation: Low partial discharge and low dielectric loss ensure stable metering and protection accuracy over decades.
Anti-Ferroresonance: Low magnetic flux density protects your system from ferroresonance issues and ensures a wide load range.
Model Designation Breakdown
- J: Voltage Transformer
- D: Single-phase
- C: Porcelain Insulation
- F: For Metering and Protection
- -60W2, -66W2, -110W2, etc.: Special Design / Structure Code
- Numerical portion (e.g., 60, 66, 110): Rated Voltage (kV)
- W: Anti-pollution Type
- 2: Design Sequence Number or Special Environment Code
- Model in parentheses (e.g., JDCF-72.5W2): Equivalent alternative model (typically indicating a model corresponding to a different Highest Voltage for Equipment).
